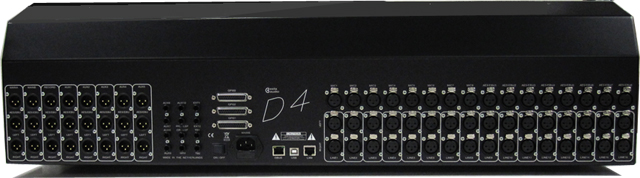

D4 Digital on-air-production broadcast mixing desk

La Mesa de mezclas universal digital D4 de Eela Audio cuenta con un diseño compacto para todo tipo de tareas. Dispone de 16 faders de entrada, cada uno con su pantalla OLED, 32 entradas estéreo y 16 salidas, 2 pantallas táctiles en color, canal programable de encendido / apagado / botón de inicio para cada atenuador de entrada. Una mesa de mezclas muy potente con un precio moderado.

Cada pantalla OLED de entrada cuenta con un pequeño medidor que indica la “actividad” en el canal y un aviso de sobrecarga. Las salidas AES/EBU se pueden emparejar y acoplar a una de las salidas. Cuenta con un conector adicional para futuras expansiones como USB. Internamente un bus multicanal está disponible para estas expansiones.

Catálogo D4

Más información »

  • 36 inputs, 3 main outputs, 10 configurable stereo outputs
  • 16 input faders, with OLED display
  • Colour touch screen for settings, e.q., dynamics, configuration
  • Separate colour display for meters
  • Channel on “Start” button above each fader
  • Broadcast audio and logical functions
  • Power Supply: mains voltage 85V .. 264V 47/440 Hz
  • Width: 840 mm / Depth: 450 mm / Height: 215 mm

Inputs

  • 8 balanced microphone / mono line inputs with 48V phantom powering, to be configured as studio or control room microphone.
  • 8 AES/EBU digital inputs with built-in sample rate converter on XLR-type connectors.
  • 16 stereo balanced line inputs on XLR connectors, 2 unbalanced "EXT" line inputs on jack
  • Each input can be assigned to a fader. E.Q., dynamics, input type etc. can be set individually per input.

Outputs

  • 2 main stereo outputs balanced analogue and AES/EBU digital on XLR.
  • 1 "recording" output allowing for recording while on-air, balanced analogue and AES/EBU digital on XLR
  • 5 programmable "AUX" outputs balanced analogue and AES/EBU digital on XLR
  • 5 stereo analogue "AUX" outputs on jack,
  • These 10 "AUX" outputs can be configured"as a standard"AUX, for hybrid or other "outside source" stereo cleanfeed or studio foldback with talkback on each output.
  • 1 control room monitor output with volume control, mute and dim function.
  • 1 headphones output with volume control.
  • 1 Pre fade listening output.

Monitor and Meters

  • 2 large colour touch screen displays, one for control and settings with clock and one for meters with PPM characteristics and individual source selector.
  • Control room monitor with volume control, source selector, mute and dim function.
  • Headphones output with volume control, independent source select on jack connector.

What makes the unit really powerful are the typical broadcast logical functions:

  • Red light signaling for Studio and Control Room,
  • Remote recall of stored settings also by means of a simple external switch.

And for each channel:

  • Faderstart, continue or pulse; “Start” on/off button; Pfl. active output; Enable codec / hybrid output (hybrid 'on');
  • Channel remote mute input; Ring detect input to signal incoming calls from hybrids;
  • Fader overrule (unity gain e.g. for automatic commercial broadcast); Remote pfl. 'on');
  • In order to integrate the mixing desk with broadcast automation software all these functions are available on a USB connector.

Logic controls are available on 3 pcs. 25 pin D-type connector -with 8 general purpose opto isolated- outputs and 8 inputs each. You can program a choice or a combination of the above functions to these inputs and outputs.

All settings can be stored into and recalled from non volatile memory, also available is a mode were you can remote recall previously stored settings by means of a simple contact closure. Selectable mode of operation at start-up.
